Author Topic: SSG and results  (Read 18593 times)

Monkeydad1969

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 2019
Re: SSG and results
« Reply #30 on: January 23, 2016, 06:24:56 PM »
That will get a squirrel out of a tree!!! I had to shoot a gray 3 times today with the .22 to get him to fall, dam there tough animals. Might have to do a carbine .25 for squirrels around here. The SSG is a billion times easier to tune than standard spring pocket gun dont you think Scott. I was going to go out to the shop but decided id drink a beer instead plus its DAM cold out there lol. Tomorrows another day Ill figure it out.

And I can attest to this.  I was on the line when he 'tortured' that gray.  LOL!!!!!
  • Aurora, Colorado
Joe the P-Dawg Slayer!!!!!

PakProtector

  • Newbie
  • *
  • Posts: 19
Re: SSG and results
« Reply #31 on: January 24, 2016, 05:06:15 AM »

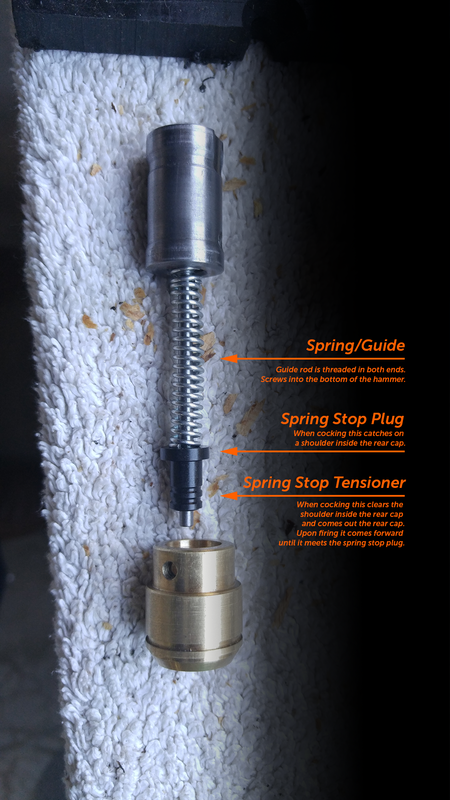

I haven't done any accuracy testing, we are up to our knees in snow right now.... but for a different reason I am working with a newer version of the SSG as well.... I am using a version which effectively does the same as yours, but the guide is not fastened to the hammer.... It looks like this....



Think about is as the way you are doing it, but without the guide fastened solidly to the hammer, it just pushes against it.... The weight of the guide travels with the hammer, and no energy is wasted accelerating it and then having it crash to a halt against the end of the tube.... All it does is pick up the weight of the very light collar just before hitting the valve stem.... In addition, it doesn't stick out the back anywhere near as far, nothing to catch your fingers with, but you can still get a cocking indicator if you wish.... The added advantage is that you don't need as high a cocking force, as no energy is wasted.... The first time I used this, I had a choice of less preload or getting more energy from the hammer and being able to use a heavier pellet (guess which I picked)....  ;D

Bob

This is a fairly easy one to implement if the end cap gets threaded 5/8" fine...:) a 10-32 nut threaded onto a guide that is 3/16" and leaves enough clearance inside the end cap nut. I am building one of these next...:) Having a set up all ready running in the rifle leaves me plenty of parts to take good measurements.

Also, on the gen1's, 10-32 guide rod leaves enough thumb clearance( and does not require putting your thumb on the bolt handle). Look carefully, as *YOUR* thumb may be larger than mine and thus at risk...LOL
cheers,
Douglas

rsterne

  • Member 2000+fps Club
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1996
  • Mozey-On-Inn and see what Coalmont has to offer!
    • Mozey-On-Inn
Re: SSG and results
« Reply #32 on: January 24, 2016, 08:53:36 AM »
If you want a smaller nut, you can drill out a 6-32 nut and re-tap it to 10-32....

Bob
  • Coalmont, BC

int3man

  • Sr. Member
  • ****
  • Posts: 463
Re: SSG and results
« Reply #33 on: January 24, 2016, 01:36:45 PM »
Hi Guys,
               Maybe a stupid question but it won't be my first.  In following this and playing with my Prod, it seems that I might have an extra .5 in available for the spring.  Is there an advantage to having a longer spring?  From reading your posts more coils, less cocking force, but same hammer force?  Am I following correctly?

TIA
Michael :- )
  • Central California
WAR .22 PRod
WAR .25 Marauder
Broadening my Horizions
.22 Brocock Super 6 XL
.25 BSA Scorpion Huma Reg.
.25 Air Arms Extra FAC
.30 Kalibr Cricket
.22 Taipan Mutant Standard

WAR .22 Marauder, Huma, LW Hammer,  Rapid 70 Bull  Stolen
Flex .30  Stolen

Yes I still have an ICQ Number.  Raise your hand if you do.

rsterne

  • Member 2000+fps Club
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1996
  • Mozey-On-Inn and see what Coalmont has to offer!
    • Mozey-On-Inn
Re: SSG and results
« Reply #34 on: January 24, 2016, 03:23:20 PM »
Yes, a longer, lighter spring, for a given preload, will have less cocking force.... It's the AVERAGE spring force you need to get a given power.... The limit will be the spring going coil bound, or being too light to do the job....

Bob
  • Coalmont, BC

int3man

  • Sr. Member
  • ****
  • Posts: 463
Re: SSG and results
« Reply #35 on: January 24, 2016, 06:55:49 PM »
O.K.  Thanks!!
  • Central California
WAR .22 PRod
WAR .25 Marauder
Broadening my Horizions
.22 Brocock Super 6 XL
.25 BSA Scorpion Huma Reg.
.25 Air Arms Extra FAC
.30 Kalibr Cricket
.22 Taipan Mutant Standard

WAR .22 Marauder, Huma, LW Hammer,  Rapid 70 Bull  Stolen
Flex .30  Stolen

Yes I still have an ICQ Number.  Raise your hand if you do.

Windmeister

  • Full Member
  • ***
  • Posts: 108
Re: SSG and results
« Reply #36 on: January 26, 2016, 07:54:20 AM »
I built my new version of the SSG yesterday, using a hammer I had laying around. preload was about 4.5lb
it works really well, however the hammer is super heavy, and now even heavier due to the extra hardware on it. Bounce is back due to mass increase.
I will make a much lighter hammer today or tomorrow, and test it again. It works really well, and if you were to add a little "button on the end of the guide, it's a rear cocker as well.
Another upside I found, is that when you tune it, you can easily move the hammer, to check how much dead play there is between the valve stem and hammer face.

I have also threaded the hammer cocking pin, so I can remove the whole thing by only removing the rear cap.


oldpro

  • Guest
Re: SSG and results
« Reply #37 on: January 26, 2016, 03:03:58 PM »

Description: .25 marauder stock reworked valve with SSG .187 barrel port
Notes 1: 2800-1800psi
Notes 2:
Distance to Chrono(FT): 1.00
Ballistic Coefficient: 1.000
Bullet Weight(gr): 25.40
Temp: N/A °F
BP: N/A inHg
#          FPS  FT-LBS      PF
23    895      45.19    22.73
22    889      44.58    22.58
21    891      44.78    22.63
20    890      44.68    22.61
19    916      47.33    23.27
18    891      44.78    22.63
17    906      46.30    23.01
16    908      46.51    23.06
15    908      46.51    23.06
14    912      46.92    23.16
13    912      46.92    23.16
12    903      46.00    22.94
11    903      46.00    22.94
10    910      46.71    23.11
9    895      45.19    22.73
8    912      46.92    23.16
7    898      45.49    22.81
6    887      44.38    22.53
5    909      46.61    23.09
4    888      44.48    22.56
3    883      43.98    22.43
2    900      45.69    22.86
1    903      46.00    22.94
Average: 900.4 FPS
SD: 9.8 FPS
Min: 883 FPS
Max: 916 FPS
Spread: 33 FPS
Shot/sec: 0.1
True MV: 900 FPS
Group Size (in): 0.00



oldpro

  • Guest
Re: SSG and results
« Reply #38 on: January 26, 2016, 03:04:43 PM »

Opened up the stock valve and barrel port then added the SSG, tuned and got around 28 shots but My crono has only 1 working IR light so I got miss reads  I deleated the miss reads and the above string is whats left of string. several first shots miss read so string starts high and looks like it has no curve but it does LOL. SSG are being made now and will be on website shortly, I will also be offering a SSG install and tune all in one for big savings.
Modify message

Whitney1

  • Jr. Member
  • **
  • Posts: 52
Re: SSG and results
« Reply #39 on: January 26, 2016, 04:09:10 PM »
Ready for Retail !!! Marauder SSG  I will have pricing in my Vendor gate and on website shortly.

rsterne

  • Member 2000+fps Club
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1996
  • Mozey-On-Inn and see what Coalmont has to offer!
    • Mozey-On-Inn
Re: SSG and results
« Reply #40 on: January 26, 2016, 04:34:23 PM »
Hey Travis, that's GREAT !!!.... Congratulations, I hope you sell a ton of them.... and your customers love 'em....

Bob
  • Coalmont, BC

Whitney1

  • Jr. Member
  • **
  • Posts: 52
Re: SSG and results
« Reply #41 on: January 26, 2016, 04:51:15 PM »
Thanks Bob! I know they will be a hit. This will also make my job easier , as you know tunning a SSG is simpler than a standard marauder.

rsterne

  • Member 2000+fps Club
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1996
  • Mozey-On-Inn and see what Coalmont has to offer!
    • Mozey-On-Inn
Re: SSG and results
« Reply #42 on: January 26, 2016, 06:24:01 PM »
not to mention more shots at the same power!....

Bob
  • Coalmont, BC

Whitney1

  • Jr. Member
  • **
  • Posts: 52
Re: SSG and results
« Reply #43 on: January 26, 2016, 06:27:00 PM »

Description: war valve and SSG.25
Notes 1:
Notes 2:
Distance to Chrono(FT): 1.00
Ballistic Coefficient: 1.000
Bullet Weight(gr): 25.40
Temp: N/A °F
BP: N/A inHg
#          FPS  FT-LBS      PF
27    880      43.68    22.35
26    883      43.98    22.43
25    889      44.58    22.58
24    892      44.88    22.66
23    897      45.39    22.78
22    900      45.69    22.86
21    905      46.20    22.99
20    909      46.61    23.09
19    908      46.51    23.06
18    912      46.92    23.16
17    914      47.12    23.22
16    919      47.64    23.34
15    924      48.16    23.47
14    921      47.85    23.39
13    920      47.74    23.37
12    925      48.27    23.50
11    926      48.37    23.52
10    914      47.12    23.22
9    913      47.02    23.19
8    911      46.82    23.14
7    886      44.28    22.50
6    897      45.39    22.78
5    893      44.98    22.68
4    888      44.48    22.56
3    895      45.19    22.73
2    889      44.58    22.58
1    899      45.59    22.83
Average: 904.0 FPS
SD: 14.0 FPS
Min: 880 FPS
Max: 926 FPS
Spread: 46 FPS
Shot/sec: 0.1
True MV: 904 FPS
Group Size (in): 0.00


Sent from my iPhone

rsterne

  • Member 2000+fps Club
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 1996
  • Mozey-On-Inn and see what Coalmont has to offer!
    • Mozey-On-Inn
Re: SSG and results
« Reply #44 on: January 26, 2016, 06:55:36 PM »
Good solid 25 shots (more than 3 clips) within a 4% ES at 46 FPE average.... looks great to me....

Bob
« Last Edit: January 27, 2016, 09:57:52 PM by rsterne »
  • Coalmont, BC
