Author Topic: Hammer spring changes. (Read 1151 times)

Monkeydad1969 · « **on:** March 08, 2017, 04:22:28 PM »

So, we all know how the new Discos have the new longer spring (16 coils). Even longer than a 13XX spring (23 coils).

I happen to have HunterOne's 1377 to do some things to. I pulled the spring and, let's just say Crosman has changed things again. A new hammer spring that's more related to the original Disco hammer spring. It has 18 coils. It measures 1 7/8".
New Disco spring is 2 1/4" long.
The original 13XX spring is 2".

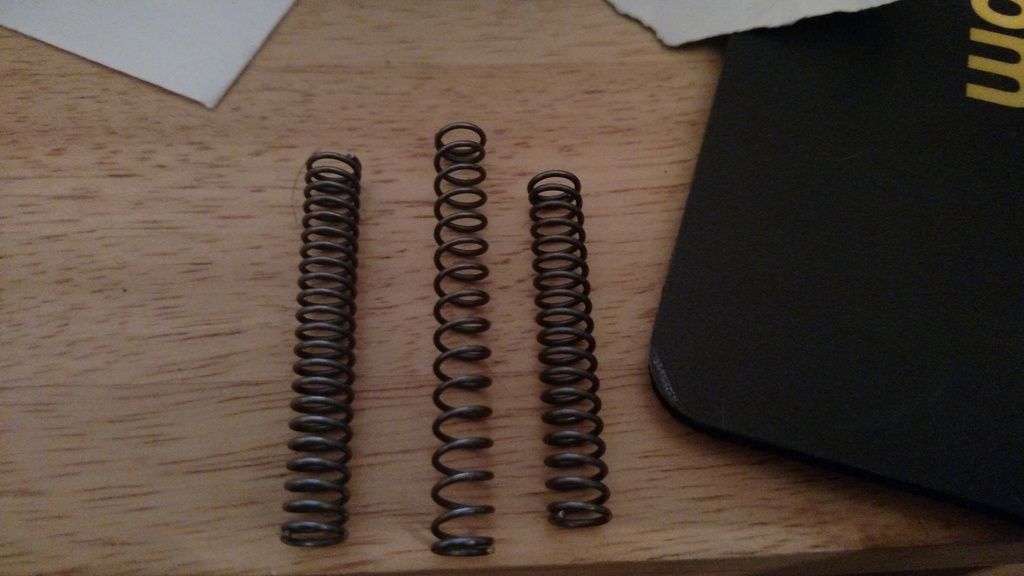

L-2-R...13XX, New Disco, New 13XX:

Just wanted to put that info out there.

The Monkey

Alan · « **Reply #1 on:** March 09, 2017, 04:46:06 AM »

The real measure isn't so much the number of turns or the uncompressed length. It is the force required to compress the spring to a specific (shorter) length. I would guess they're very close to one another.
